The ultrasonic sensor is designed for mounting on the ceiling or a cable channel and detecting the availability of a parking space. It is recommended for covered parking lots. All sensors have the digital signal processing (DSP), adaptive sensitivity and temperature compensation functions. The sensor transmits the parking space availability information in real-time to the ParkSol system. The system represents the number of free parking spaces on LED screens.
Features and Benefits
- Made in the European Union.
- 127 detectors in a loop.
- Weather proof – IP66 protection class. Instantly works in -40/+70 ºC temperature.
- Ambient temperature measurement function, temperature maps.
- Detector mounting till the height of 4.5 m.
- Flash Wave energy saving function. Indicators are flashing according to the wave principle
- High brightness LEDs with reflector optics and +/-45 degree beam angle adjustment.
- Remote display function (optional).
- Sensors are designed to be installed on a standard MQ-type galvanized installation channel.
- Quick and easy sensor connection to the base via the NailPin connector.
- Audible warning function (optional).
- Standalone demo sensor for system presentations.
- Digital Signal Processing (DSP) and Adaptive Temperature Compensation (ATC).
- Joint commands for sensor groups.
- Sensor software update over the network.
Technical Details
Electrical characteristics
Supply voltage | 12-24 VDC |
Current | 0.1-0.2 A |
Power consumptizon | 2 W |
Sensor type
Detection method | Ultrasonic |
Detection distance | 0.7- 4 m |
Interfaces
Type | RS485 |
RS-485 ports | 1 |
RS-485 isolation | no |
Cable Type | Shielded, twisted pair EIA RS485 |
Indication
Light colour, angle adjustment | Integrated red/green LED till 45 degrees |
Environment
Work temperature | -40°C ….+70°C |
Humidity | 20 ….95% |
Other
Housing type | IP66 |
Mounting method | Screws |
Dimension (mm) | 136 x 123 x 200 |
Weight | 350 g |
Colour | Grey/ transparent |

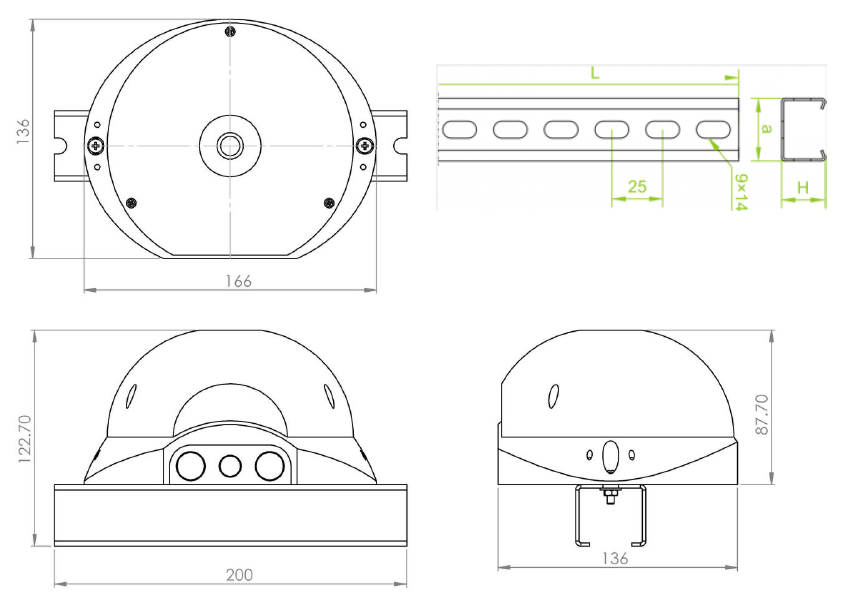

Dimensions and schematics
Housing type | IP66 |
Mounting method | Screws |
Dimension (mm) | 136 x 123 x 200 |
Weight | 350 g |
Colour | Grey/ transparent |
